Concepts

Import

import streamlit as st

Display

• Text/Title

    import streamlit as st
    st.title("Welcome to streamlit")
    st.text('Happy Learning!')


• Header/Subheader

    import streamlit as st
    st.header('Header')
    st.subheader('Subheader')


• Markdown

    import streamlit as st

    # Basic markdown
    st.markdown('Header')

    # Advanced
    html_temp = """
    <div style="background-color:tomato;padding:10px">
    <h2 style="color:white;text-align:center;">Markdown html Example </h2>
    </div>
    """
    st.markdown(html_temp,unsafe_allow_html=True)
    st.markdown('<i class="material-icons">{}</i>'.format("people"), unsafe_allow_html=True)

    # Load stylesheet
    with open(style.css) as f:
    	st.markdown('<style>{}</style>'.format(f.read()), unsafe_allow_html=True)


• Latex

    import streamlit as st
    st.latex(r''' e^{i\pi} + 1 = 0 ''')
    st.latex(r'''
    		... a + ar + a r^2 + a r^3 + \cdots + a r^{n-1} =
    		... \sum_{k=0}^{n-1} ar^k =
    		... a \left(\frac{1-r^{n}}{1-r}\right)
    		... ''')


• Write

    import streamlit as st
    st.write('Example text')
    st.write(['st', 'is <', 3])
    st.write("✔️ Time up!")


• Code

    import streamlit as st
    st.code('s="Happy Learning!" for i in range(0,10): print(s)')

    st.echo()
    with st.echo():
    	text = 's="Happy Learning!" for i in range(0,10): print(s)'
    	st.write(text)


• Help

    import streamlit as st
    st.help(range)


Data

	import streamlit as st
	import pandas as pd
	import numpy as np

	df1 = pd.DataFrame(
    np.random.randn(50, 5),
    columns=('col %d' % i for i in range(5)))
	my_table = st.table(df1)

	st.write('Dataframe example')
	st.dataframe(df1)

	data = {'1':"True",'2':"True",'3':"False"}
	st.json(data)

Media

	import streamlit as st
	from PIL import Image
	import urllib.request

	# Basic image
	st.image('./image.png')

	img = Image.open("download.jfif") #open the image stored in specified location

	#Opens the image from the url
	img = Image.open(urllib.request.urlopen("https://mms.businesswire.com/media/20200616005364/en/798639/22/Streamlit_Logo_%281%29.jpg"))

	st.image(img, width=300, caption="Simple Image")


	# Video playing
	vid_file = open("videofile.mp4","rb").read() #play the video stored in specified location
	st.video(vid_file)

	#Audio
	audio_file = open('myaudio.ogg', 'rb')
	audio_bytes = audio_file.read()
	st.audio(audio_bytes, format='audio/ogg')

Charts

	import streamlit as st
	import numpy as np
	import matplotlib.pyplot as plt

	st.line_chart({"data": [1, 5, 2, 6, 2, 1]})
	st.area_chart({"data": [1, 5, 2, 6, 2, 1]})
	st.bar_chart({"data": [1, 5, 2, 6, 2, 1]})

	arr = np.random.normal(1, 1, size=100)
	fig, ax = plt.subplots()
	ax.hist(arr, bins=20)
	st.pyplot(fig)

	st.altair_chart(data)
	st.vega_lite_chart(data)
	st.plotly_chart(data)
	st.bokeh_chart(data)
	st.pydeck_chart(data)
	st.deck_gl_chart(data)
	st.graphviz_chart(data)
	st.map(data)

Widgets

	import streamlit as st

	st.button('Click')
	st.checkbox('Check the checkbox')
	st.radio('Radio Button',[1,2,3])
	st.selectbox('Select', [1,2,3])
	st.multiselect('Multiselect', [1,2,3])
	st.slider('slide',min_value=0, max_value=10)
	st.text_input('Enter Username')
	st.number_input('Enter a Number')
	st.text_area('Enter Text Here!')
	st.date_input('Date Input')
	st.time_input('Time entry')
	st.file_uploader('File Uploader')
	st.beta_color_picker('Select color')

Sidebar

	import streamlit as st
	st.sidebar.<widget>
	<widget> : button, checkbox, radio, selectbox, multiselect, slider, text_input, number_input, text_area, date_input, time_input

Control Flow

	import streamlit as st
	st.stop()

Progress Bar

	import streamlit as st
	import time

	# Sample Progress bar
	my_bar = st.progress(0)

	for percent_complete in range(100):
		time.sleep(0.1)
		my_bar.progress(percent_complete + 1)

	with st.spinner('Wait for it...'):
	    time.sleep(5)
	st.write('Done!')

Status Messages & Others

	import streamlit as st

	st.error('Error Message')
	st.warning('Warning Message')
	st.info('Info Message')
	st.success('Success Message')
	st.exception("IndexError('list out of index')")
	st.balloons()

	st.empty()
	place_holder = st.empty()
	place_holder.text('Replaced!)

	st.get_option(key)
	st.set_option(key)

	st.beta_set_page_config(layout='wide')

Cache or Optimize

	import streamlit as st

	@st.cache
	func()

Magic Command

	import streamlit as st

	'''
	# Markdown magic

	This is some _**text**_.
	'''

	df = pd.DataFrame({'col1': [40,54,67]})
	df  # <-- df values

	x = 100
	'x', x  # <-- 'x' and its value

Apps Deployment

• Using StreamlitShare



  Prerequisites

  • Requirements.txt file - Github account - Access to share.streamlit.io

  • ReferLink

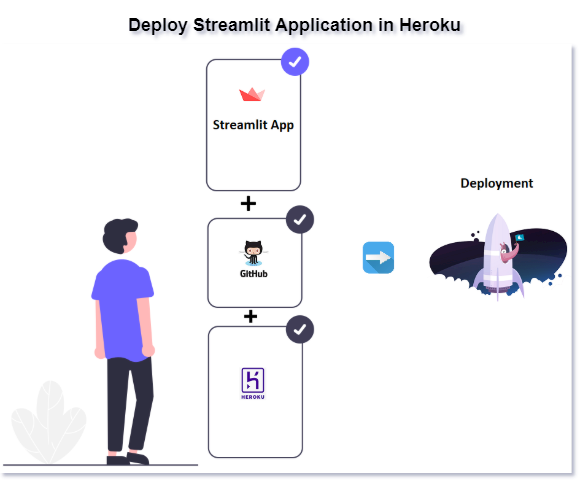

• Using Heroku



References

• docs/API
